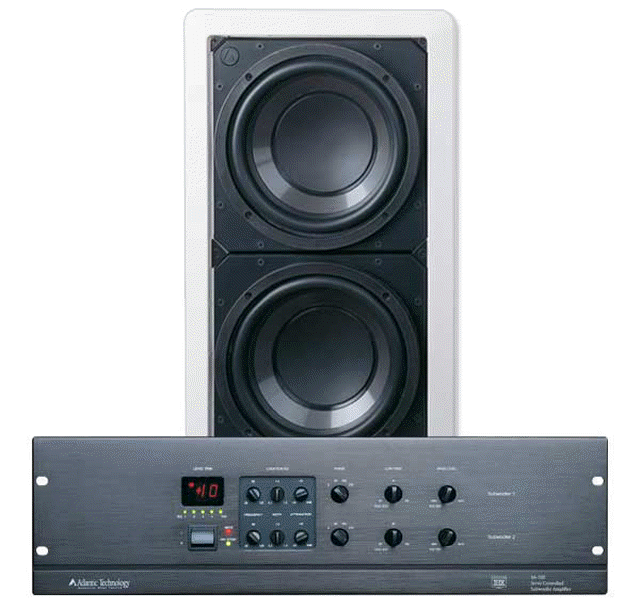

THX Ultra Dual 8" In-Wall Sub & SA700 Watt Amp KIT

THX Ultra Dual 8" In-Wall Sub & SA700 Watt Amp KIT
Click to enlarge image(s)
THX Ultra-certified bone crushing bass--totally invisible
THX Ultra Dual 8" In-Wall Sub & SA700 Watt Amp (SYS)

High Performance THX bass-flush in 2 x 4 wall construction

“The system is authoritative, quick and superbly musical . . . incredibly deep bass.” — Darryl Wilkinson, Home Theater

Great movie and music experiences build on a foundation of powerful, accurate bass. Achieving this kind of bass performance at home typically requires large, bulky, and obtrusive enclosures. In addition, the acoustic interaction between rooms and subwoofers degrades bass performance at the listening position. Now, with our inwall subwoofer systems, you can get powerful, accurate, and authoritative deep bass from practically invisible THX Ultra® certified subwoofers that fit in standard 2 x 4 or 2 x 6 studded walls.

In-wall sub, totally hidden from view
Dual 8" woofers and 700-watt outboard amplifier with room-correction
Back box enclosure included
This is the solution to Unblievable Bass using ZERO floor space

Drivers (2) 8” High output woofers,
Coated Composite Molded Graphite cones
with 8 lbs. motor assemblies
Frequency Response 20Hz - 100Hz ± 3dB (typical, in room)
Peak Output Single 102dB, Dual 105dB (3000 cu. ft. space)
Dimensions (H x W x D) Woofer Module: 19-13/16” x 10-5/8” x 3”
IN-BOX-8 SUB Enclosure: 82” x 14” x 3-1/2”

OverviewProduct SpecsDetails

In-wall sub, totally hidden from view
Dual 8" woofers and 350-watt outboard amplifier with room-correction
Back box enclosure included
This is the solution to Unblievable Bass using ZERO floor space

Specifications:

IWTS 8 Subwoofer Module Specifications
Drivers (2) 8” High output woofers,
Coated Composite Molded Graphite cones
with 8 lbs. motor assemblies
Frequency Response 20Hz - 100Hz ± 3dB (typical, in room)
Peak Output Single 102dB, Dual 105dB (3000 cu. ft. space)
Dimensions (H x W x D) Woofer Module: 19-13/16” x 10-5/8” x 3”
IN-BOX-8 SUB Enclosure: 82” x 14” x 3-1/2”

SA 700 Dual Mono Subwoofer Amplifier Specifications

RMS Power 350 watts x 2
Dynamic IHF Peak 550 watts x 2
Signal to Noise Ratio <97dB full power (-90dB hum)
Total Harmonic Distortion 0.05% @ full output
Net Weight 38.9lbs.
Height 5“ including feet, faceplate
Width 2-U rack mountable, Faceplate: 19” Enclosure: 16-7/8” Depth 14 “ including knobs and rear terminals

In-box-8 sub enclosures

Each Atlantic Technology Sub 8 in-wall enclosure is 82 inches tall, 14-1/2-inches wide and 3-1/2 inches deep, with a 17-13/16 x 9-3/8 inch cut-out dimension for the woofer module. Designed for installation before the sheet rock goes on, only a discrete grille is visible at knee-level in the room. While the grill extends 1-1/2 inches into the room to accommodate the high excursion of the woofers, its smoothly radiused compound curves make it very inconspicuous.
